TILLOTSON CARBURETOR PARTS

Stack Parts

Rebuild Kits

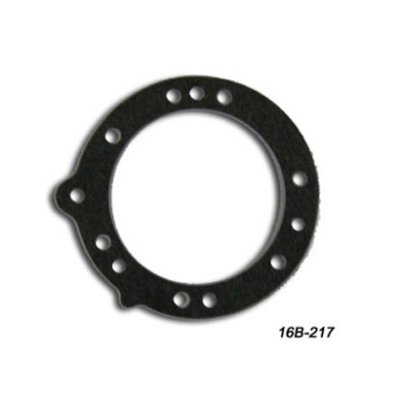

Part# '16B-217'
REF #9
Diaphragm Gasket
Fits All HL & HR
Sell $0.89

Part# '237-600'
REF #10
Diaphragm
Fits All HL & HR
Sell $6.05

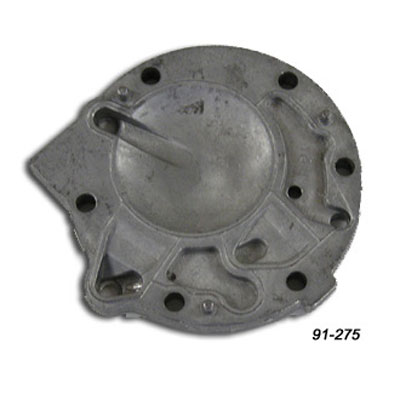

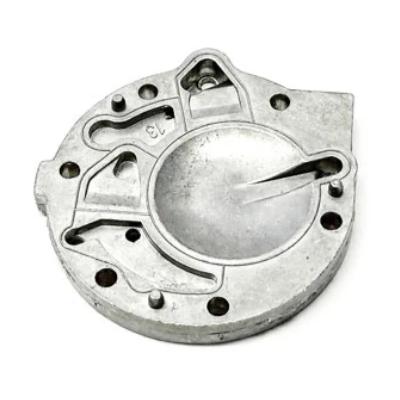

Part# '91A-275'
REF #11
Diaphragm Cover
Fits Single Stack
Sell $4.87

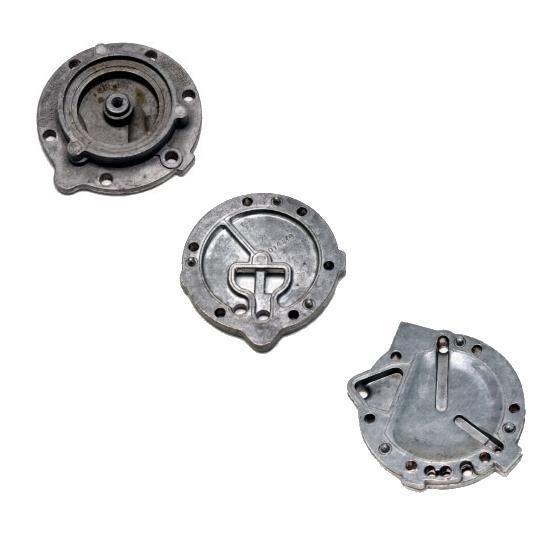

Part# 'EC-801'
Double Stack Set - 3PC
Fits Double Stack Carbs
High Volume Set
Aftermarket
Sell $34.80

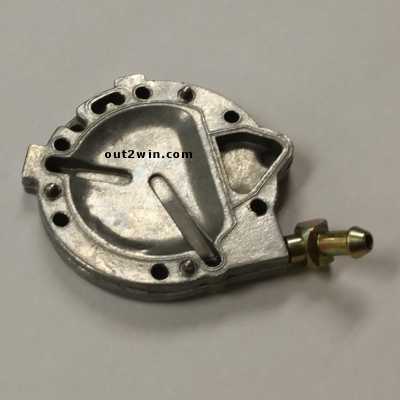

Part# '91-1000'
REF #11
Diaphragm Cover
Fits Double Stack
With pulse fitting
Sell $19.98

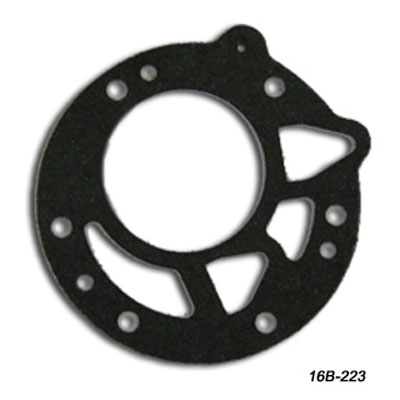

Part# '16B-223'
REF #13
Fuel Pump Gasket (.020")
All Single Stack
Sell $0.89

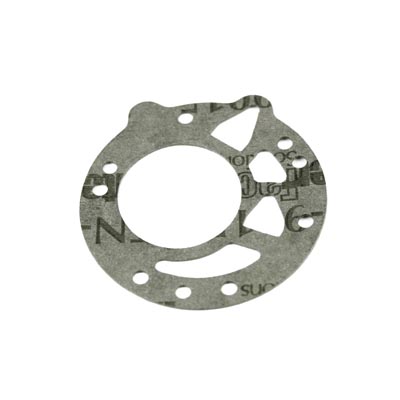

Part# 'EC-219'
"Trick" F.P. Gasket
High Volume (.040")
All Single Stack
Sell $0.95

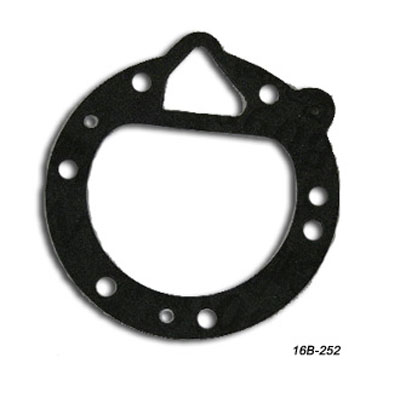

Part# '16B-252'
REF #13
Fuel Pump Gasket (.020")
All Double Stack
Sell $0.89

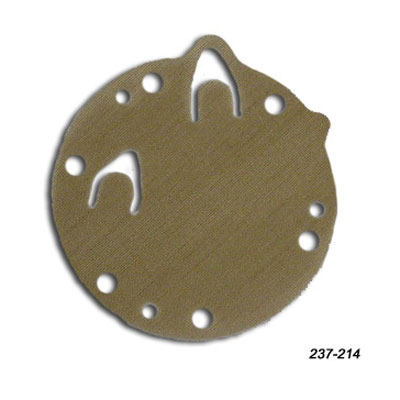

Part# '237-214'
REF #14
Fuel Pump Diaphragm
Thin (.004")
HL-166B, HL-314G
Sell $2.67

Part# '237-141'
REF #14
Fuel Pump Diaphragm
Thick (.006") Standard
Most Single Stack
Sell $2.67

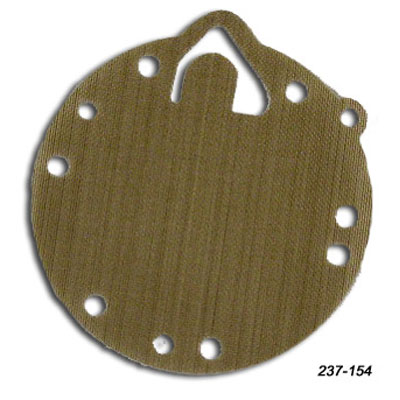

Part# '237-154'
REF #14
Fuel Pump Diaphragm
All Double Stack
Sell $2.72

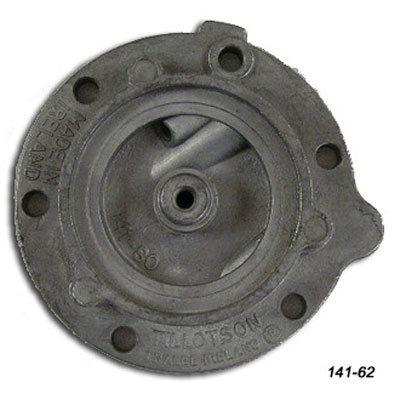

Part# '141-62'
REF #15
Fuel Pump Body
Most Single Stack
Sell $10.45

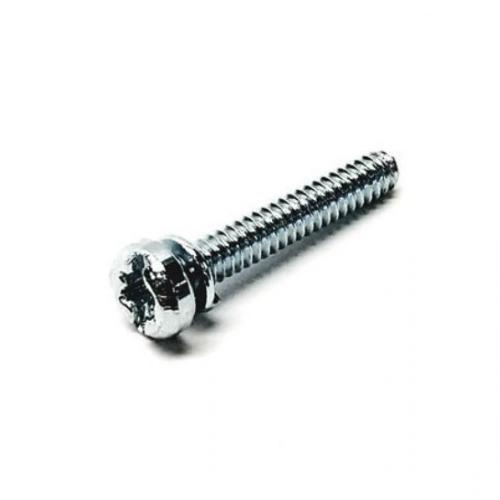

Part# '15C-51'
REF #16
Assembly Screw
All Single Stack
Sell Each ~~$0.80~~
SALE Each $0.40

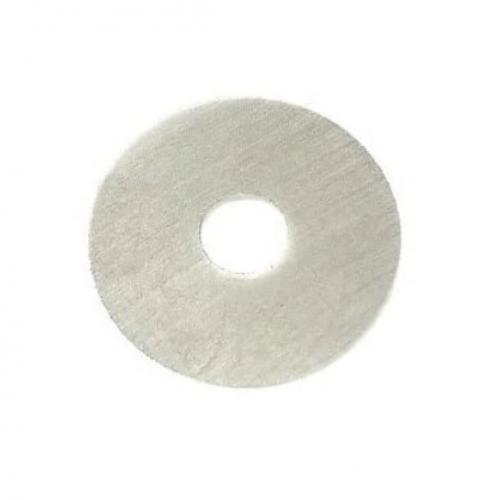

Part# '95-170'
REF #17
Screen - Silver
HL Carbs GAS
Sell $1.07

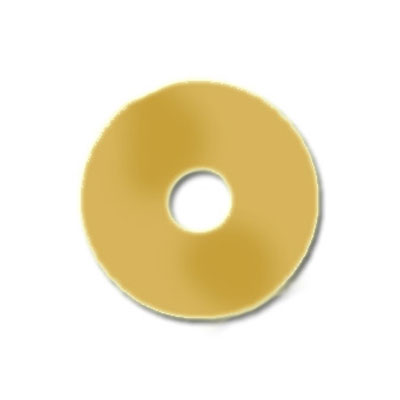

Part# '95-174'
REF #17
Screen - Brass
Fits HL Carbs ALKY
Fits HR 181 & 191
Sell $0.99

Part# '16B-205'
REF #18
Cork Gasket
Fits ALL
Sell $0.99

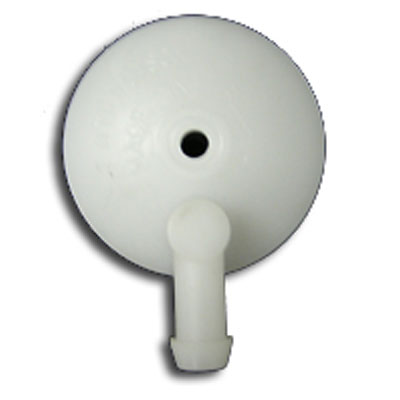

Part# '91A-251'
REF #19
Cover - Fuel Top
WHITE
Fits HL-166B
Sell $2.75

Part# '91A-351'
REF #19
Cover - Fuel Top
BLUE
Fits MOST
Sell $3.45

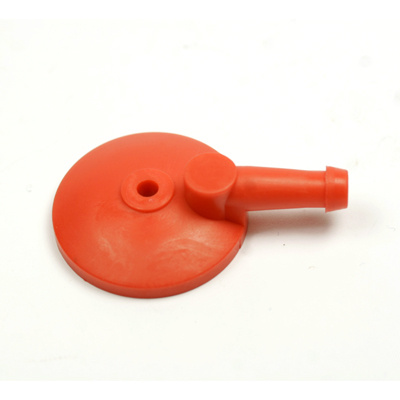

Part# '91A-351R'
REF #19
Cover - Fuel Top
RED
"Trick" High Flow
Sell $3.50

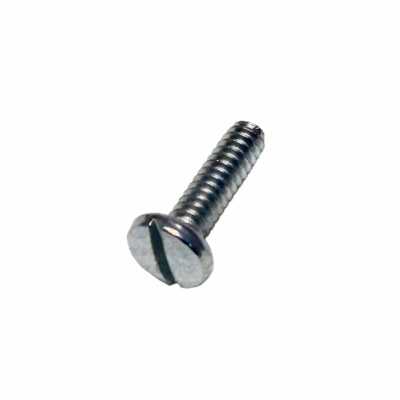

Part# '15B-313'
REF #20
Screw - Fuel Top
Fits ALL
Sell $0.72

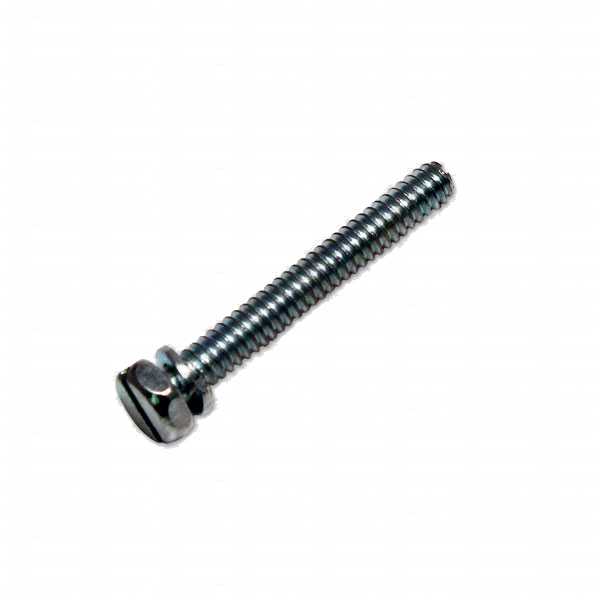

Part# '15B-343'
REF #29B
Assembly Screw
All Double Stack
Sell Each $1.18

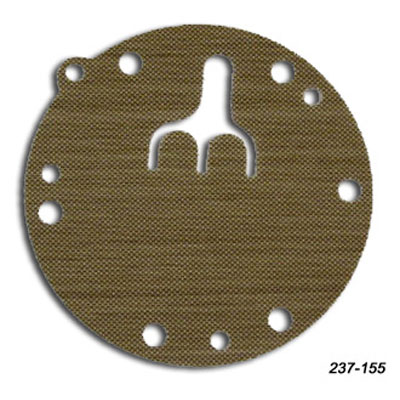

Part# '237-155'
REF #29C
Diaphragm, Inlet Valve
All Double Stack
Sell $2.71

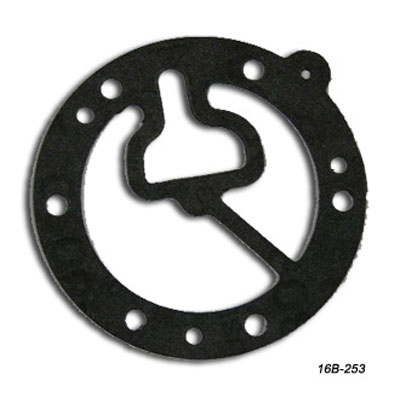

Part# '16B-253'
REF #29D
Gasket, Inlet Valve
All Double Stack
Sell $0.89

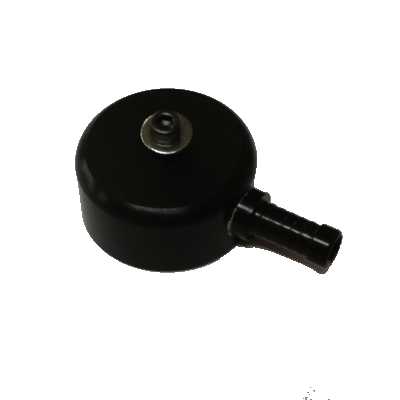

Part# 'BB-086-104'
AFTERMARKET
Aluminum Carb Top
From Buller Built
Sell $15.75
