SMC ROCKET RIM CLUTCH

Part# 'SMC4404'

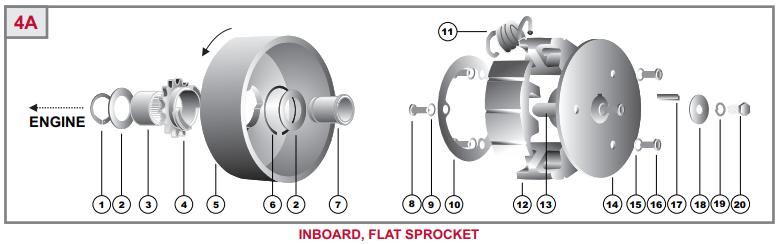

SMC Rocket Rim Clutch
Shoe clutch
Sold less sprocket
1 Piece Drum
No longer available.

Part# 'RR4630'
REF #1
Snap Ring
Fits Inner Race

Sell $0.65

Part# 'SMC4010'
REF #2
Washer
(0.080" thick)
More Sizes Available.
Sell $1.80

Part# 'SMC4037'
REF #6
Retaining Ring
Fits Sprocket

Sell $1.50

Part# 'SMC4417'
REF #7
Inner Race
(1.275" length)
(w/ 0.185" shoulder)
Sell $9.00

Part# 'SMC4006'
REF #8
Screw, Torx Head
Button Head Cap Screw
(10-32 x 5/8) 3 required
Sell $0.55

Part# 'SMC4425'
REF #9
Star Washer #10
Sold in pack of 10
3 required
Sell $1.00

Part# 'SMC4418'
REF #11
Spring, Orange
More Springs Available
3 required (#APSS52)
Sell Each $6.57

Part# 'APSP1204'
REF #12
Clutch Shoe
3 required

Sell $13.37

Part# 'SMC4426'
REF #15
Star Washer 1/4"
Sold in pack of 10
3 required
Sell $1.00

Part# 'SMC4047'
REF #17,18,19,20
Hardware Kit
Key, Washers & Bolt
Inboard Mount
Sell $2.95
