YAMAHA KT100S ENGINE PARTS

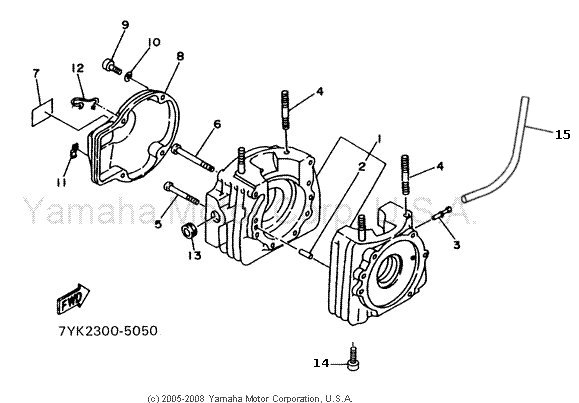

CRANKCASE & PARTS

Yamaha Crankcase

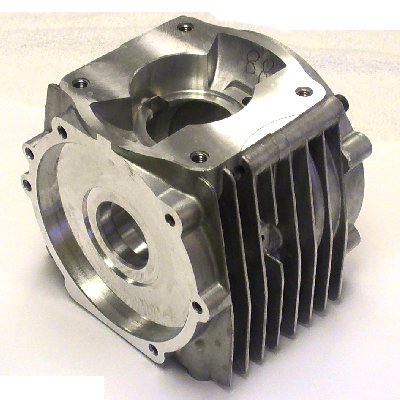

REF 1 - Crankcase Assembly
Part# '787-15100-06-00'
REF #1
Crankcase Assembly
List $452.70
Sell $362.16

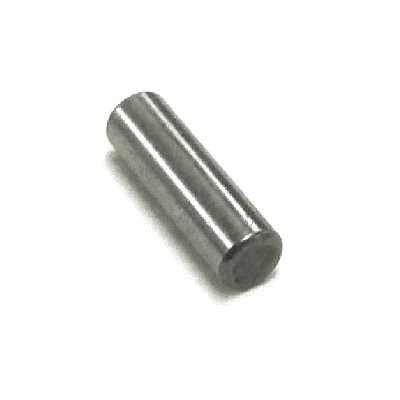

REF 2 - Pin, Dowell
Part# '93606-20044-00'
REF #2
Pin, Dowell (Locating)
List $1.16
Sell $0.93

REF 3 - Nozzle
Part# '7YA-13522-00-00'
REF #3
Nozzle (Pulse)
List $4.17
Sell $3.54

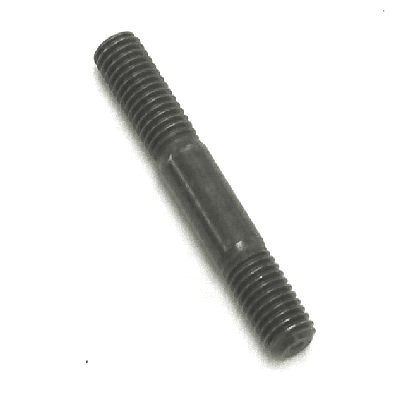

REF 4 - Bolt, Stud, (Cases)
Part# '95617-08645-00'
REF #4
Stud, Crankcase
List $5.30
Sell $4.24

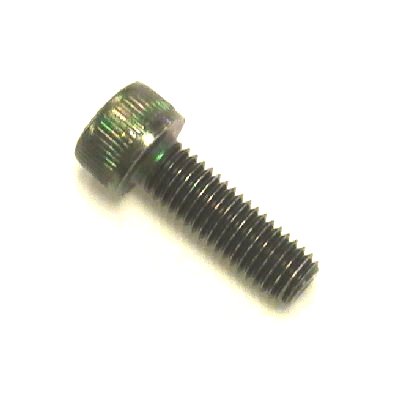

REF 5 - Bolt (Case Assembly)
Part# '91317-06045-00'
REF #5
Bolt, Cases (Short)
List $1.88
Sell $1.50

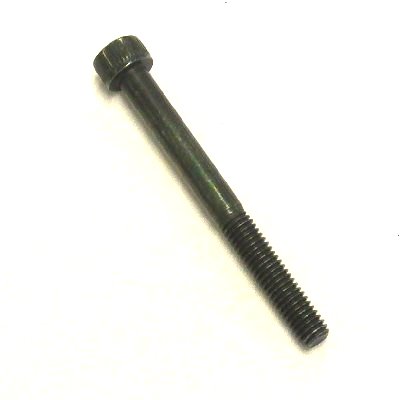

REF 6 - Bolt (Case Assembly)
Part# '91317-06060-00'
REF #6
Bolt, Cases (Long)
List $1.88
Sell $1.50

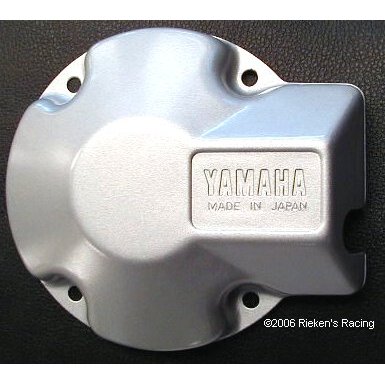

REF 8 - Cover, Crankcase
Part# '7F6-15411-02-00'
REF #8
Cover, Ignition
List $45.79
Sell $36.63

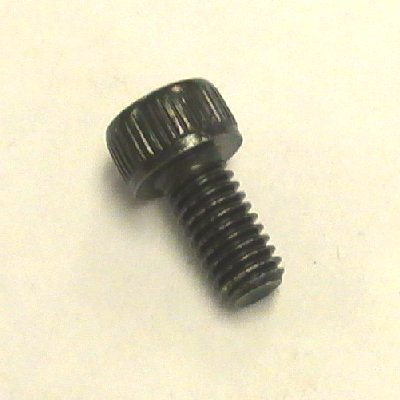

REF 9 - Bolt (Ignition Cover)
Part# '91317-06012-00'
REF #9
Bolt, (Ignition Cover)
List $1.88
Sell $1.50

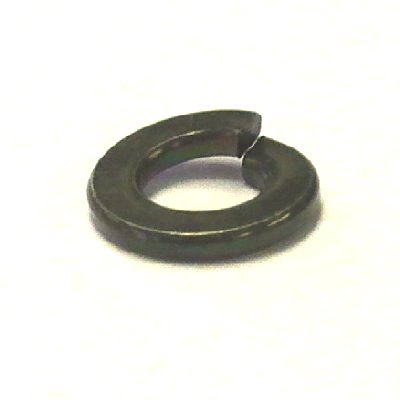

REF 10 - Washer, Lock
Part# '92907-06100-00'
REF #10
Lock Washer
List $0.60
Sell $0.48

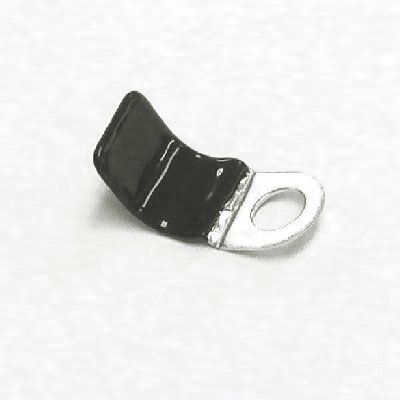

REF 11 - Clamp
Part# '90462-08042-00'
REF #11
Coated Clamp, Wire
List $5.45
Sell $4.36

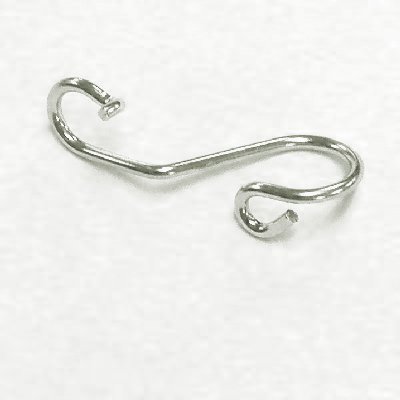

REF 12 - Clip
Part# '90468-20074-00'
REF #12
Clip, Wire
List $5.05
Sell $4.04

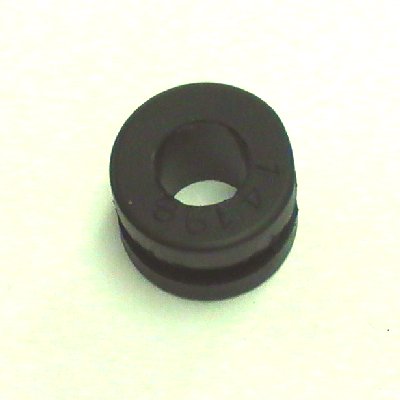

REF 13 - Grommet (With Hole)
Part# '90480-14198'
REF #13
Grommet (With Hole)
List $4.08
Sell $3.47

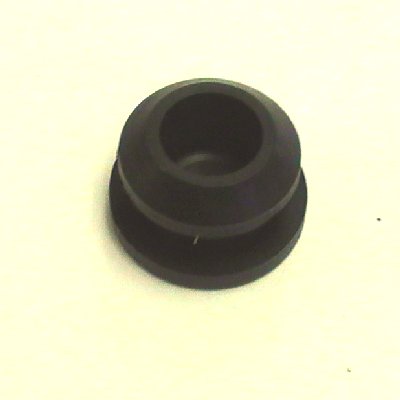

REF 13 - Grommet (Without Hole)
Part# '90480-18N09'
REF #13
Grommet (Without Hole)
List $3.74
Sell $2.99

REF 14 - Bolt (Engine Mount)
Part# '91317-08025-00'
REF #14
Bolt, Engine Mount
List $3.38
Sell $2.70

REF 15 - Pulse Hose - Standard
Part# 'OH PH'
REF #15 (aftermarket)
Pulse Hose, 3/16" ID
List $2.50
Sell $2.13 / Foot

REF 15 - Pulse Hose - Small Carb
Part# 'OH PH8'
REF #15 (aftermarket)
Pulse Hose, 1/8" ID
List $2.50
Sell $2.13 / Foot

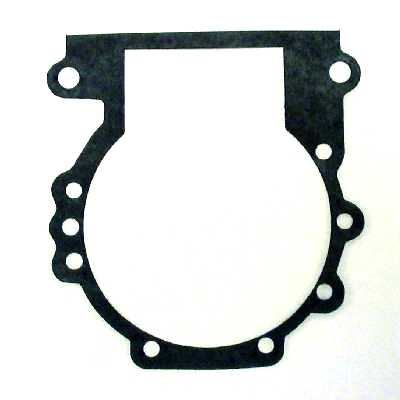

Case Gaskets

More Engine Parts
