PFEIFER BELT DRIVE

Pfeifer Industries

Pfeifer Steel Drive Pulleys for Yamaha KT100, 8MM Pitch Sell Sell Sell
Part # Teeth Width(s) O.D. 20MM 30MM 40MM
14T 20-30-40 1.369" 46.20 52.80 66.50
15T 20-30-40 1.467" 46.20 57.20 68.50
16T 20-30-40 1.565" 48.40 59.40 70.50
17T 20-30-40 1.663" 48.40 61.60 72.50
18T 20-30-40 1.760" 50.60 63.80 74.50
19T 20-30-40 1.858" 52.80 66.00 76.50
20T 20-30 1.956" 55.00 68.20
21T 20-30 2.054" 57.20 70.40
22T 20 2.152" 59.40

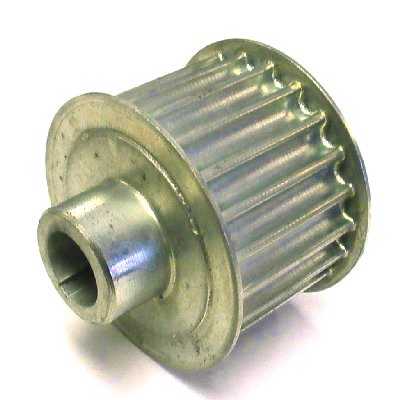

Pfeifer Steel Drive Pulleys for 5 Offset, 8MM Pitch Sell Sell Sell
Part # Teeth Width(s) O.D. 20MM 30MM 40MM
14T 20-30-40 1.369" 56.20 62.80 76.50
15T 20-30-40 1.467" 56.20 67.20 78.50
16T 20-30-40 1.565" 58.40 69.40 80.50
17T 20-30-40 1.663" 58.40 71.60 82.50
18T 20-30-40 1.760" 60.60 73.80 84.50
19T 20-30-40 1.858" 62.80 76.00 86.50
20T 20-30 1.956" 65.00 78.20
21T 20-30 2.054" 67.20 80.40
22T 20 2.152" 69.40

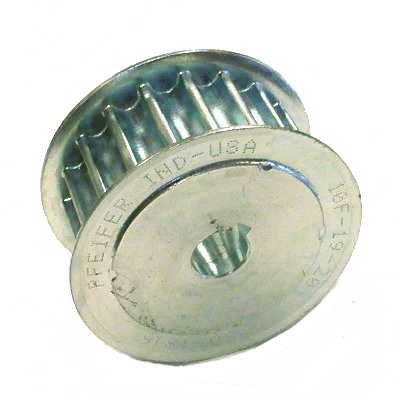

Bolt-on Driver for Engine Clutch
Part# '10F-19-20-SHLT'
Driver, Bolt-on
19T x 20mm Wide x 8MM Pitch
Sell $74.40

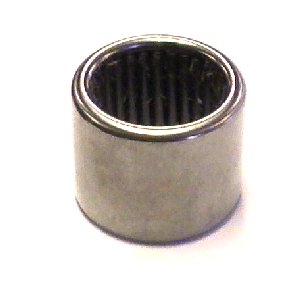

Replacement Needle Bearing
Part# '10F-19NB'
Replacement Needle Bearing
Fits 10F-19-20-SHLT
Sell $5.00

Belts

Belt 20MM x 600MM x 8MM
Part# '20F-600-20'
Belt, 20MM wide x
600MM long x
8MM pitch
Sell $18.83

Belt 30MM x 600MM x 8MM
Part# '20F-600-30'
Belt, 30MM wide x
600MM long x
8MM pitch
Sell $25.93

Belt 20MM x 560MM x 8MM
Part# '20F-560-20'
Belt, 30MM wide x
560MM long x
8MM pitch
Sell $16.39

Belt 30MM x 560MM x 8MM
Part# '20F-560-30'
Belt, 30MM wide x
560MM long x
8MM pitch
Sell $24.57

Jr Sprint

Rear Pulley 30T x 30mm
Part# '10F-30-30A002'
Pulley 30T x 30mm
3/4" Bore keyed
No Flange
Sell $52.83

Front Pulley 20T x 20mm
Part# '10F-20-20A0.75'
Pulley 20T x 20mm
3/4" Bore keyed
Flanged
Sell $54.27

Front Pulley 20T x 30mm
Part# '10F-20-30A001'
Pulley 20T x 30mm
3/4" Bore keyed
Flanged
Sell $59.27
