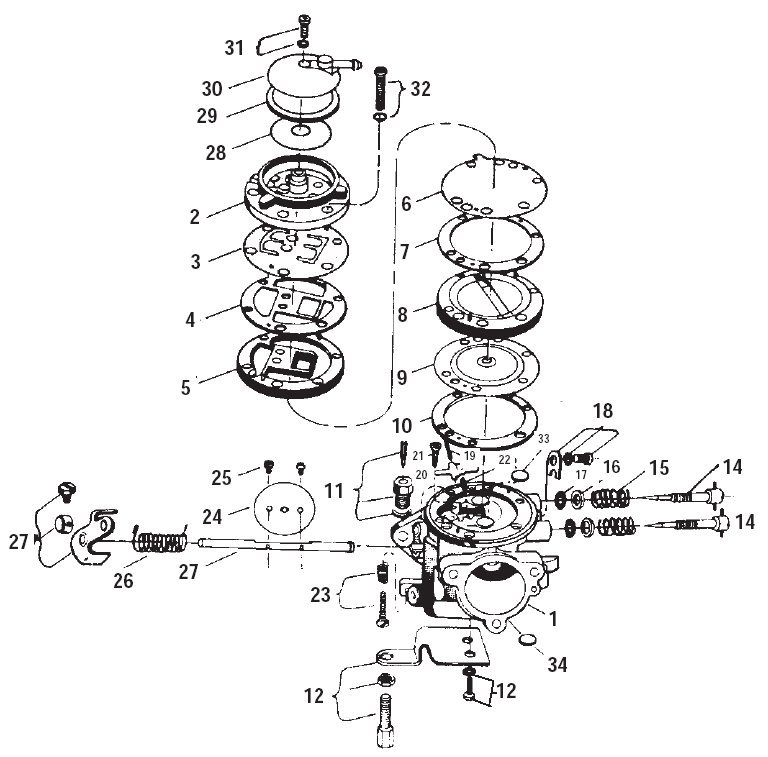

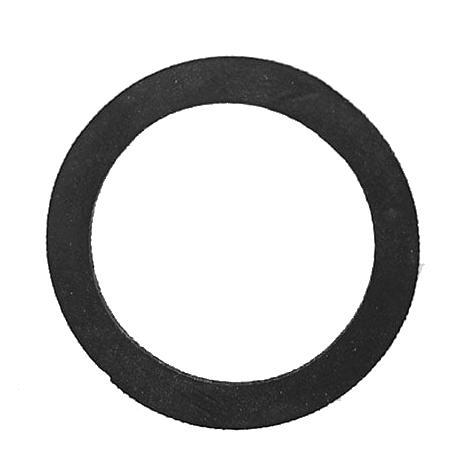

MIKUNI 34-34 CARB PARTS Click here for schematic of Mikuni 34-34 Carb. Mikuni Fuel Pumps also available. Part# Description List Sell BMC 34-01 Throttle Bracket Assy. 12.13 10.92 BMC 34-02 Body, Inlet Valve 18.53 16.68 BMC 34-03 Cover Body, Diaphragm 16.06 14.45 BMC 34-04 Diaphragm 12.40 12.40 BMC 34-05 Body, Fuel Pump 18.53 16.68 BMC 34-6G Needle & Seat 17.33 15.59 BMC 34-6N Needle, Rubber Tip 7.67 7.29 BMC 34 6W Washer, Inlet Valve 0.50 0.45 BMC 34-9L Needle, Fuel Mixture 7.67 6.91 BMC 34-10 Gasket, Fuel Pump/Diaphragm 0.89 0.80 BMC 34-11 Diaphragm, Fuel Pump 2.87 2.87 BMC 34-12 Diaphragm, Inlet Valve 2.87 2.87 BMC 34-13 Gasket Inlet Valve 0.89 0.80 BMC 34-14 Spring, Needle 0.99 0.89 BMC 34-15 Washer, Needle 0.79 0.71 BMC 34-16 O-Ring, Needle 1.82 1.63 BMC 34-17 Assy. Retaining Clip 4.70 4.23 BMC 34-18 Shaft, Fulcrum 0.69 0.62 BMC 34-19 Fulcrum Arm 4.01 3.61 BMC 34-20 Screw, Fulcrum 0.59 0.53 BMC 34-21 Spring, Fulcrum 1.49 1.34 BMC 34-22 Screw, Idle Speed 2.31 2.08 BMC 34-23 Butterfly 13.37 12.03 BMC 34-24 Screw, Butterfly 0.85 0.85 BMC 34-25 Spring, Throttle Shaft 3.22 2.90 BMC 34-26 Throttle Shaft Assembly 22.93 22.93 BMC 34-27 Filter Screen 2.61 2.35 BMC 34-28 Gasket, Fuel Cover 1.91 1.72 BMC 34-29 Fuel Cover 4.37 3.94 BMC 34-30 Screw, Fuel Cover 0.89 0.80 BMC 34-31 Screw, Retaining 0.83 0.74 BMC 34-32 Welch Plug 0.83 0.74 BMC34-43L Welch Plug, Large 1.08 0.97 BMC 34-33 Gasket, Flange 1.09 0.98 BMC 34-34 Gasket Set 23.05 20.75 BMC 34-35 Allen Bolt Kit 6.60 5.94 BMC 34-36n Brass Sight Nozzle 7.84 7.05 BMC 34-26s Screw Throttle Shaft 1.08 0.97 Mikuni Carb Accessories Part # Description List Sell C-HRBU Air Filter Cup Gasket 1.60 1.00 TJ1105A Trick jet -- Alky 10.95 10.95 TJ1105G Trick Jet -- Gas 10.95 10.95 We only sell parts for the Mikuni 34-34 carb. Order | Back to the Carb Page | Fuel Pumps | Back to the Catalog | Rieken's Racing Rieken's Racing (319)373-2018       365 7th Ave., Marion, IA 52302 ©2001-2006 Rieken's Racing All Rights Reserved Legals Prices and Availability subject to change without notice Website designed & maintained by Rieken's Racing
