REF
1 - Inner Race Retaining Ring
 |
Part# 'SMC 4013'
REF #1
Retaining Ring
Inner Race
Sell $1.00 |
|
REF
2 - Outer Washer, Large
 |
Part# 'SMC 4010'
REF #2
Outer Washer
Fits 14T & up #35
Fits 17T & up #219
Sell $1.25 |
|
REF
2 - Outer Washer, 12T
 |
Part# 'SMC 4049'
REF #2
Outer Washer
Fits 12T #35
Fits 16T #219
Sell $1.25 |
|
REF
2 - Outer Washer, 13T
|
Part# 'SMC 4023'
REF #2
Outer Washer
Fits 13T #35
Sell $1.25 |
|
REF
2 - Outer Washer, 11T
 |
Part# 'SMC 4027'
REF #2
Outer Washer
Fits 11T #35
Sell $2.50 |
|
REF
2 - Inner Washer
|
Part# 'SMC 4010'
REF #2
Inner Washer
Fits all but 11T #35
Sell $1.25 |
|
REF
2 - Inner Washer, 11T
 |
Part# 'SMC 4038'
REF #2
Inner Washer
Fits 11T #35 only
Sell $5.00 |
|
REF
3 - Inner Race
 |
Part# 'SMC 4011'
REF #3
Inner Race, 1.187"
Fits all but 11T #35
Sell $9.00 |
|
REF
3 - Inner Race / Bushing 11T
 |
Part# 'SMC 4039'
REF #3
Inner Race / Bushing
Fits 11T #35
Sell $7.00 |
|
REF
4 - Needle Roller Bearing
 |
Part# 'SMC 4012'
REF #4
Needle Roller Bearing
Sell $7.50 |
|
REF
4 - Plain Bearing
 |
Part# 'SMC 4020'
REF #4
Plain Bearing
Sell $3.50 |
|
REF 5 - Sprocket #35
 |
Part# '
'
REF #5
Sprocket fits #35
Sell $19.80 |
|
REF
5 - Sprocket #219
 |
Part# '
'
REF #5
Sprocket fits #219
Sell $19.80 |
|
REF
6 - 2D Drum
 |
Part# 'SMC 4812'
REF #6
Drum
Fits 2 Disc Clutch
Sell $33.75 |
|
REF
6 - 3D Drum
 |
Part# 'SMC 4813'
REF #6
Drum
Fits 3 Disc Clutch
Sell $33.75 |
|
REF
7 - Retaining Ring for Sprocket
 |
Part# 'SMC 4037'
REF #7
Retaining Ring for Sprocket
(Max 11,000rpm)
Sell $1.50 |
|
REF
8 - Button Head Cap Screw
 |
Part# 'SMC 4006'
REF #8
Screw
Sell $0.25 |
|
REF
9 - Drive Plate
 |
Part# 'SMC 4003'
REF #9
Drive Plate
Sell $16.00 |
|
REF
10 - Clutch Disc
 |
Part# 'SMC 4931'
REF #10
Clutch Disc, 8 Tab
Sell $26.50 |
|
REF 11 - Pressure Plate
 |
Part# 'SMC 4841'
REF #11
Pressure Plate
Sell $37.50 |
|
REF
12 - 2D Drive Hub
 |
Part# 'SMC 4829'
REF #12
Drive Hub
Fits 2 Disc Clutch
Sell $75.00 |
|
REF
12 - 3D Drive Hub
 |
Part# 'SMC 4830'
REF #12
Drive Hub
Fits 3 Disc Clutch
Sell $99.00 |
|
REF
13 - Lever
 |
Part# 'SMC 4843'
REF #13
Lever
6PC Required
Sell $7.50 each |
|
REF
14 - Bullet Spring
 |
Part# 'SMC 4847'
REF #14
Compression Spring
6PC Required
Sell $2.50 |
|
REF
15 - Bushing
 |
Part# 'SMC 4855'
REF #15
Bushing
6PC Required
Sell $0.95 Each |
|
REF
15 - Hex Nut
 |
Part# 'SMC 4854'
REF #15
Hex Nut
6PC Required
Sell $0.45 Each |
|
REF
16 - Key for 2D & 3D Clutch
 |
Part# 'SMC 4036'
REF #16
Key
Fits 2&3 Disc Clutches
Sell $0.50 |
|
REF
17 - Spacer for 2D Clutch
 |
Part# 'SMC 4032'
REF #17
Spacer 0.250"
Fits 2 Disc Clutch
Sell $4.00 |
|
REF
18 - Crankshaft Washer
 |
Part# 'SMC 4016'
REF #18
Washer, Crankshaft
Sell $0.60 |
|
REF
19 - Lock Washer
 |
Part# 'SMC 4025'
REF #19
Lock Washer
Sell $0.25 |
|
REF
20 - Hex Head Cap Screw
 |
Part# 'SMC 4017'
REF #20
Hex Head Cap Screw
Sell $0.75 |
|
REF

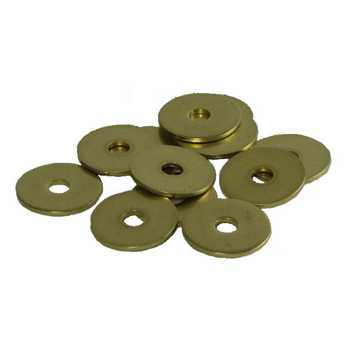

21 - Extra Mass Hardware Set
 |
Part# 'SMC 4861'
REF #21
Brass Washer
Set of 12PC
Sell $3.00 |
|
REF

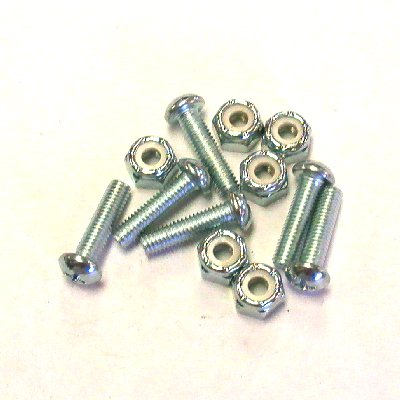

22 - Attachment Hardware
 |
Part# 'SMC 4860'
REF #22
Attachment Hardware
Set of 6PC
Sell $3.00 |
|
