BRIGGS RAPTOR PARTS

Gasket Sets

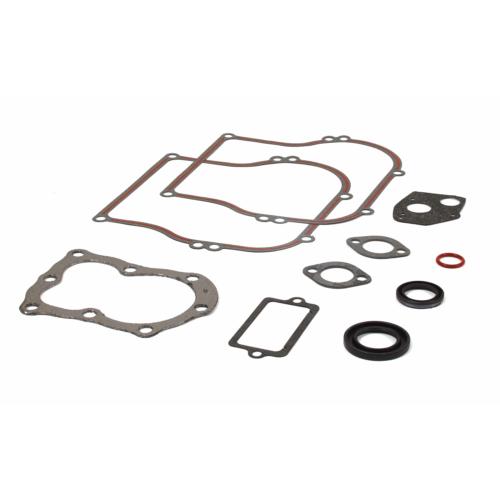

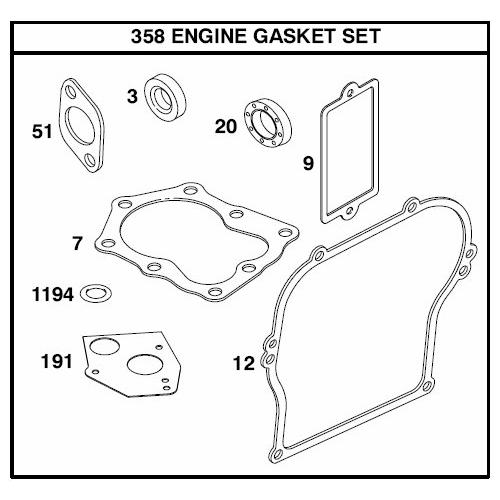

Engine Gasket Set (OEM)

Part# '555210'
Engine Gasket Set
OEM Briggs
List $17.85
Sell $13.39

Carburetor Overhaul Kit (OEM)

Part# '555130'
Carb Kit
OEM Briggs
Sell $13.70

Fel-Pro Engine Gasket Set

Part# 'FPS90001'
Engine Gasket Set
Paper Type
From Fel-Pro
List $37.30
Sell $24.99

Fel-Pro Engine Gasket Set

Part# 'FPS90003'
Engine Gasket Set
Rubber / Steel Type
From Fel-Pro
List $49.73
Sell $33.32

Individual Gaskets

Exhaust Gasket, OEM

Part# '691893'
OEM Exhaust Gasket
List $1.40
Sell $1.19

Exhaust Gasket, Aftermarket

Part# 'CKEX'
Fiber Exhaust Gasket
Sell Each $1.00
Sell 10PC $8.25

Copper Exhaust Gaskets

Part# 'RLV 4216'
Copper Exhaust Gasket
Sell Each $3.99
Sell 5PC $15.98

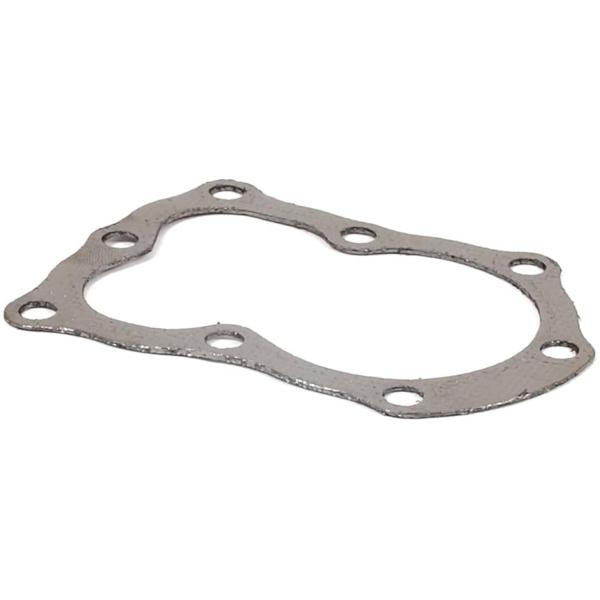

#7 Gasket - Head (OEM)

Part# '555236'
Gasket - Head
List $5.90
Sell $4.43

#9 Gasket - Breather (OEM)

Part# '27549S' Breather Gasket
List $1.80 / Sell $1.53

Part# '4159' Gasket, 10PC
List $15.10 / Sell $12.84

#51 Gasket - Intake (OEM)

Part# '27909S' Intake Gasket
List $2.45 / Sell $2.08

Part# '55501' Gasket, 10PC
List $19.30 / Sell $14.48

#394 Diaphragm - Pump (OEM)

Part# '272538S' Diaphragm
List $2.20 / Sell $1.87

Part# '4168' Diaphragm, 5PC
List $9.25 / Sell $7.86

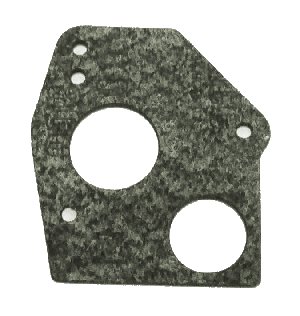

#191 Gasket - Tank (OEM)

Part# '272409S' Tank Gasket
List $3.10 / Sell $2.64

Part# '4179' Gasket, 10PC
List $24.85 / Sell $21.12

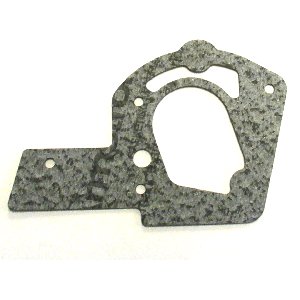

Gasket - Tank (Fun Power)

Part# '272996'
Gasket - Tank
Fits Briggs Fun Power Engine
List $2.90
Sell $2.47

#12 Side Cover Gasket - Standard

Part# '555237'
Side Cover Gasket
Standard .015"
List $3.10
Sell $2.33

Side Cover Gasket - Optional

Part# '270125'
Side Cover Gasket
Optional .005"
Sell $4.05

Side Cover Gasket - Optional

Part# '270126'
Side Cover Gasket
Optional .009"
List $2.45
Sell $2.08

#3 Oil Seal (Magneto Side)

Part# '299819S'
Oil Seal - Mag. Side
Same as #555071
List $2.90
Sell $2.47

#20 Oil Seal - Side Cover

Part# '495307S'
Oil Seal - SC
Fits Standard Crank
same as #555087
List $4.25
Sell $3.61

#1194 O-Ring only

Part# '691363'
O-Ring only
Fits #691363 Plug
Same as #555135
List $1.40
Sell $1.19

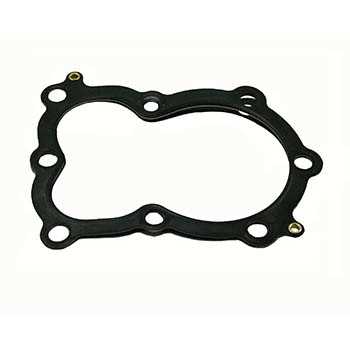

Aftermarket Head Gaskets

Fel-Pro .050" Head Gasket

Part# 'FPS10001'
Fel-Pro .050" Head Gasket
Stainless steel core
Exp. Graphite Facing
Compressed thickness .048"
NHRA, WKA, IKF, KART legal
List $11.16
Sell $7.47

Fel-Pro .050" Head Gasket 10PC

Part# 'FPS61001'
Fel-Pro .050" Head Gasket
10PC of #FPS10001
List $104.63
Sell $70.10

Fel-Pro .049" Head Gasket

Part# 'FPS10004'
Fel-Pro .049" Head Gasket
Exp. Graphite Core, steel facing
with anti-stick coatings
NHRA, WKA, IKF, KART legal
List $13.13
Sell $8.80

Fel-Pro .032" Copper Head Gasket

Part# 'FPS10002'
.032" Copper Head Gasket
Copper with anti-stick coatings
With large valve reliefs
List $17.48
Sell $11.71

Fel-Pro .043" Copper Head Gasket

Part# 'FPS10006'
.043" Copper Head Gasket
Copper with anti-stick coatings
With large valve reliefs
List $17.48
Sell $11.71

Horstman .043" Copper Head Gasket

Part# 'H406700'
.043" Copper Head Gasket
From Horstman Mfg.
List $12.97
Sell $9.73

Fel-Pro Gaskets

Fel-Pro .015" Side Cover Gasket

Part# 'FPS20002'
Fel-Pro .015" S/C Gasket
Rubber Coated Metal
List $12.81
Sell $8.58

Fel-Pro .015" Side Cover Gaskets 10PC

Part# 'FPS62002'
Fel-Pro .015" S/C Gasket
10PC #FPS20002
Rubber Coated Metal
List $121.47
Sell $81.39

Fel-Pro .015" Breather Cover Gasket

Part# 'FPS20003'
Fel-Pro Breather Gasket
Nominal thickness .015"
Rubber Coated Metal.
List $10.54
Sell $7.06

Fel-Pro .015" Breather Cover Gaskets 10PC

Part# 'FPS62003'
Fel-Pro .015" Breather Gasket
10PC #FPS20003
Rubber Coated Metal
List $89.77
Sell $60.15

Fel-Pro .060" Fuel Tank Gasket

Part# 'FPS30002'
Fel-Pro Fuel Tank Gasket
Nominal thickness .060"
Hi-Performance paper with
KEVLAR & silicone coatings.
List $6.15
Sell $4.12

Fel-Pro .060" Fuel Tank Gaskets 10PC

Part# 'FPS63002'
Fel-Pro Tank Gasket
10PC #FPS30002
List $59.57
Sell $39.91

Fel-Pro Intake Gasket

Part# 'FPS30004'
Fel-Pro Intake Gasket
Steel Core Laminate
with silicone coatings.
List $5.56
Sell $3.72

Fel-Pro .050" Exhaust Gasket

Part# 'FPS40001'
Fel-Pro Exhaust Gasket
Stainless Steel Core, exp. graphite
facing with steel port. ARMOR
List $5.56
Sell $3.72

Fel-Pro .048" Intake Gasket

Part# 'FPS30009'
Fel-Pro Intake Gasket
Steel Core Laminate with
silicone coatings. PRINTOSEAL.
List $11.63
Sell $7.79

Fel-Pro .048" Intake Gaskets 10PC

Part# 'FPS63009'
Fel-Pro Intake Gasket
10PC #FPS30009
List $106.01
Sell $71.03

Fel-Pro Intake Gasket, Tillotson Carb

Part# 'FPS30006'
Fel-Pro Intake Gasket
Nominal thickness .015"
Port size 1.050" diameter.
Hi-Performance Paper with
KEVLAR with silicone coatings.
List $1.45
Sell $0.97

Fel-Pro Intake Gaskets 10PC

Part# 'FPS63006'
Fel-Pro Intake Gasket
10PC #FPS30006
List $14.49
Sell $9.71

Fel-Pro Diaphragm Gasket

Part# 'FPS30008'
Fel-Pro Diaphragm
Nominal thickness .010"
Premium VITON® material
List $7.32
Sell $4.91

Fel-Pro Diaphragms 10PC

Part# 'FPS63008'
Fel-Pro Diaphragm
10PC #FPS30008
List $66.98
Sell $44.88

More Raptor Parts
